美国HYDRO-PAC电动增压机

HYDRO-PAC电动液体增压机

详情介绍:

美国HYDRO-PAC电动液体增压机简介:

美国Hydropac公司生产以电动液压系统为主驱动增压器产品高压的超高压设备,主要产品用适用于各个液体介质和气体介质的高压输出,通过高质量的电动液压控制系统作为动力,配合制造精密的增压缸,利用大活塞推动小活塞产生的超高压力的原理,能生产输出各种不同压力等级产品,液压输出可达700Mpa,增压器超高压增压系统适用于各种机械油,燃油,煤油,红油等航空液压油,水,纯水及非强腐蚀性液体的增压;液驱液体增压泵是将常压液压增压为高压超高压液体输出,超高压增压系统产生的高压范围从70Mpa,105Mpa,210Mpa,410Mpa,700Mpa等多种范围供不同类型的用户选择。适用于油,水,可溶性油和水,乙二醇,部分可燃性液体。

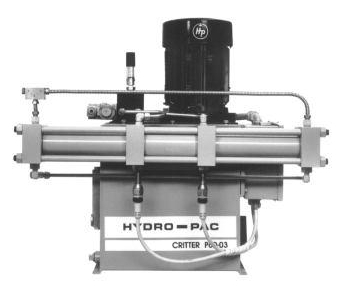

HYDRO-PAC电动液体增压机


HYDRO-PAC电动液体增压机选型表:


型号压力流量功率重量油箱容积进口连接形式出口连接形式
PsiMPagpmlpmhpkwlbkggalliter
P15-03CX150001050.250.9532.252009010401/4FNPTSF375CX
P15-05CX150001050.41.553.752009010403/8x0.203HP
P30-03CX300002100.120.4532.252009010401/4FNPTF250C
P30-05CX300002100.20.7553.752009010401/4x0.083HP
P60-03CX600004150.060.232.252009010401/4FNPTF250C
P60-05CX600004150.10.453.752009010401/4x0.083HP
P100-03CX1000006900.030.132.252009010401/4FNPTF312C150
P100-05CX1000006900.060.253.752009010405/6x0.062HP

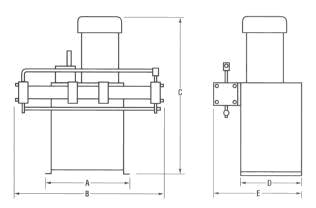

尺寸示意图:

HYDRO-PAC电动液体增压机尺寸示意图


型号ABCDE
英寸in毫米mm英寸in毫米mm英寸in毫米mm英寸in毫米mm英寸in毫米mm
P15-03CX16.7542522.5565317901538018.75475
P15-05CX16.7542522.5565317901538018.75475
P30-03CX16.7542531.5800317901538019.75500
P30-05CX16.7542531.5800317901538019.75500
P60-03CX16.7542531.5800317901538019.75500
P60-05CX16.7542531.5800317901538019.75500
P100-03CX16.7542534.75800317901538020.75525
P100-05CX16.7542534.75800317901743020.75525


HYDRO-PAC电动液体增压机-FC系列电动液体高压泵选型表:


型号压力容量进口型式出口型式
PsiMPagpmlpm
P10-10FC10000701.24.51/4FNPTFC562-20
P10-20FC10000702.49.13/8FNPTFC562-20
P10-40FC10000704.818.21FNPTFC562-20
P10-100FC10000701245.61FNPTSFC750-10
P10-150FC10000701868.41-1/4FNPTSFC1000-10
P10-200FC10000702491.21-1/2FNPTSFC1000-10







P15-10FC150001050.83.03/8FNPTFC562-20
P15-20FC150001051.66.03/8FNPTFC562-20
P15-40FC150001053.212.11FNPTFC562-20
P15-100FC15000105830.41FNPTSFC750-20
P15-150FC150001051245.61-1/4FNPTSFC1000-20
P15-200FC150001051660.81-1/4FNPTSFC1000-20







P20-10FC200001400.62.23/8FNPTFC562-20
P20-20FC200001401.24.53/8FNPTFC562-20
P20-40FC200001402.49.13/8FNPTFC562-20
P20-100FC20000140622.83/1FNPTSFC750-20
P20-150FC20000140934.21FNPTSFC1000-20
P20-200FC200001401245.61-1/4FNPTSFC1000-20







P30-10FC300002100.41.53/8FNPTFC562-40
P30-20FC300002100.83.03/8FNPTFC562-40
P30-40FC300002101.66.03/8FNPTFC562-40
P30-100FC30000210415.23/4FNPTFC562-40
P30-150FC30000210622.81FNPTFC1000-40
P30-200FC30000210830.41FNPTFC1000-40







P40-10FC400002750.31.13/8FNPTFC562-40
P40-20FC400002750.62.23/8FNPTFC562-40
P40-40FC400002751.24.53/8FNPTFC562-40
P40-100FC40000275311.43/4FNPTFC562-40
P40-150FC400002754.517.13/4FNPTFC1000-40
P40-200FC40000275622.83/4FNPTFC1000-40







P60-10FC600004150.20.73/8FNPTFC562-60
P60-20FC600004150.41.53/8FNPTFC562-60
P60-40FC600004150.83.03/8FNPTFC562-60
P60-100FC6000041527.61/2FNPTFC562-60
P60-150FC60000415311.41/2FNPTFC1000-60
P60-200FC60000415415.43/4FNPTFC1000-60







P100-10FC1000006900.120.43/8FNPTFC312-150
P100-20FC1000006900.240.93/8FNPTFC312-150
P100-40FC1000006900.481.83/8FNPTFC312-150







P150-10FC15000010350.080.33/8FNPTFC312-150
P150-20FC15000010350.160.63/8FNPTFC312-150
P150-40FC15000010350.321.23/8FNPTFC312-150







P200-10FC20000013800.060.23/8FNPT12H-1
P200-20FC20000013800.120.43/8FNPT12H-1
P200-40FC20000013800.240.93/8FNPT12H-1









*以上流量为在60Hz的电源功率下测得,当电源在50Hz时,流量需按上述数值乘以0.83系数才为实际流量。


型号ABCD重量液箱
功率
英寸毫米英寸毫米英寸毫米英寸毫米lbkggalliterhpkw
P**-10FC307603691535890621575100045530100107.5
P**-20FC33845399904210656215751200545471752015
P**-40FC399905112955213208822352100950722704030
P**-100FC30760481220781980101256542501930135010075
P**-150FC338454812207819801012565450020401350150110
P**-200FC369154812207819801012565475021551350200150


温馨提示:由于厂家可能会调整型号,我们没有及时更新,以上选型参数仅供参考,建议咨询我们人工确认。
