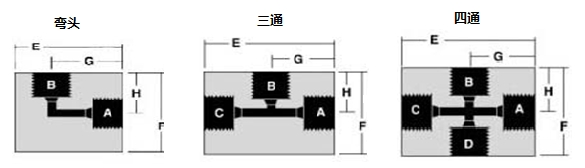

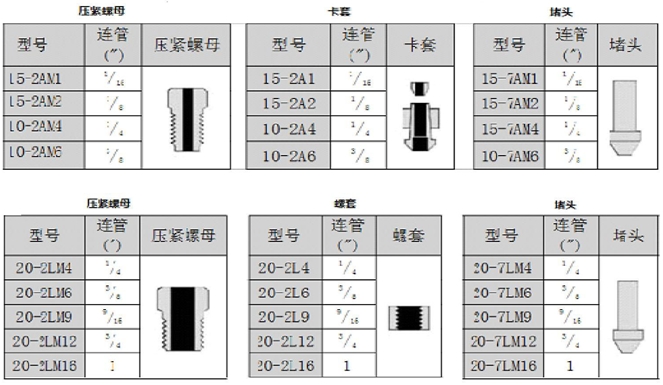

HIP管路连接件(三通四通接头等)
HIP弯头
型号 | MPA | 连接 | A-B | E(") | F(") | G(") | H(") | 厚(") |
15-22AF1 | 103 | 1/16"O.D.TUBE | AF1 | 3/4 | 3/4 | 9/16 | 9/16 | 3/8 |
15-22AF2 | 103 | 1/8"O.D.TUBE | AF2 | 11/8 | 11/8 | 3/4 | 3/4 | 3/4 |
10-22AF4 | 69 | 1/4"O.D.TUBE | AF4 | 11/2 | 11/2 | 1 | 1 | 1 |
10-22AF6 | 69 | 3/8"O.D.TUBE | AF6 | 11/2 | 11/2 | 1 | 1 | 1 |
20-22LF4 | 138 | 1/4"O.D.TUBE | LF4 | 13/16 | 1 | 7/8 | 11/16 | 5/8 |
20-22LF6 | 138 | 3/8"O.D.TUBE | LF6 | 13/8 | 13/8 | 1 | 1 | 3/4 |
20-22LF8 | 138 | 9/16"O.D.TUBE | LF8 | 13/4 | 13/4 | 11/4 | 11/4 | 1 |
20-22LF12 | 138 | 3/4"O.D.TUBE | LF12 | 21/4 | 21/4 | 11/2 | 11/2 | 13/8 |
20-22LF16 | 138 | 1"O.D.TUBE | LF16 | 3 | 3 | 21/16 | 21/16 | 13/4 |
60-22HF2 | 414 | 1/8"O.D.TUBE | HF2 | 11/8 | 11/8 | 3/4 | 3/4 | 3/4 |
60-22HF4 | 414 | 1/4"O.D.TUBE | HF4 | 13/8 | 11/2 | 7/8 | 1 | 1 |
60-22HF6 | 414 | 3/8"O.D.TUBE | HF6 | 13/4 | 11/2 | 11/4 | 1 | 1 |
60-22HF9 | 414 | 9/16"O.D.TUBE | HF9 | 25/8 | 11/2 | 17/8 | 11/8 | 11/2 |
40-22HF9 | 276 | 9/16"O.D.TUBE | HF9 | 25/8 | 17/8 | 11/8 | 11/8 | 11/2 |
30-22HF16 | 138 | 1"O.D.TUBE | HF16 | 3 | 3 | 21/16 | 21/16 | 13/4 |
100-22XF4 | 690 | 1/4"O.D.TUBE | XF4 | 13/4 | 13/4 | 11/4 | 11/4 | 1 |
150-22XF6 | 1034 | 3/8"O.D.TUBE | XF6 | 25/8 | 25/8 | 13/4 | 13/4 | 11/2 |
HIP三通
型号 | MPA | 连接 | A-B | E(") | F(") | G(") | H(") | 厚(") |
15-23AF1 | 103 | 1/16"O.D.TUBE | AF1 | 1 | 3/4 | 1/2 | 9/16 | 3/8 |
15-23AF2 | 103 | 1/8"O.D.TUBE | AF2 | 11/2 | 11/8 | 3/4 | 3/4 | 3/4 |
15-23AF4 | 69 | 1/4"O.D.TUBE | AF4 | 2 | 11/2 | 1 | 1 | 1 |
15-23AF6 | 69 | 3/8"O.D.TUBE | AF6 | 2 | 11/2 | 1 | 1 | 1 |
20-23LF4 | 138 | 1/4"O.D.TUBE | LF4 | 13/14 | 1 | 7/8 | 11/16 | 5/8 |
20-23LF6 | 138 | 3/8"O.D.TUBE | LF6 | 2 | 13/8 | 1 | 1 | 3/4 |
20-23LF8 | 138 | 9/16"O.D.TUBE | LF8 | 21/2 | 13/4 | 11/4 | 11/4 | 1 |
20-23LF12 | 138 | 3/4"O.D.TUBE | LF12 | 3 | 21/4 | 11/2 | 11/2 | 13/8 |
20-23LF16 | 138 | 1"O.D.TUBE | LF16 | 41/8 | 3 | 21/16 | 21/16 | 13/4 |
60-23HF2 | 414 | 1/8"O.D.TUBE | HF2 | 11/2 | 11/8 | 3/4 | 3/4 | 3/4 |
60-23HF4 | 414 | 1/4"O.D.TUBE | HF4 | 2 | 13/8 | 1 | 7/8 | 1 |
60-23HF6 | 414 | 3/8"O.D.TUBE | HF6 | 2 | 19/16 | 1 | 11/16 | 1 |
60-23HF9 | 414 | 9/16"O.D.TUBE | HF9 | 25/8 | 21/8 | 15/16 | 13/8 | 11/2 |
40-23HF9 | 276 | 9/16"O.D.TUBE | HF9 | 25/8 | 21/8 | 15/16 | 13/8 | 11/2 |
30-23HF16 | 138 | 1"O.D.TUBE | HF16 | 41/8 | 3 | 21/16 | 21/16 | 13/4 |
100-23XF4 | 690 | 1/4"O.D.TUBE | XF4 | 21/2 | 13/4 | 11/4 | 11/4 | 1 |
150-23XF6 | 1034 | 3/8"O.D.TUBE | XF6 | 31/2 | 25/8 | 13/4 | 13/4 | 11/2 |
HIP四通

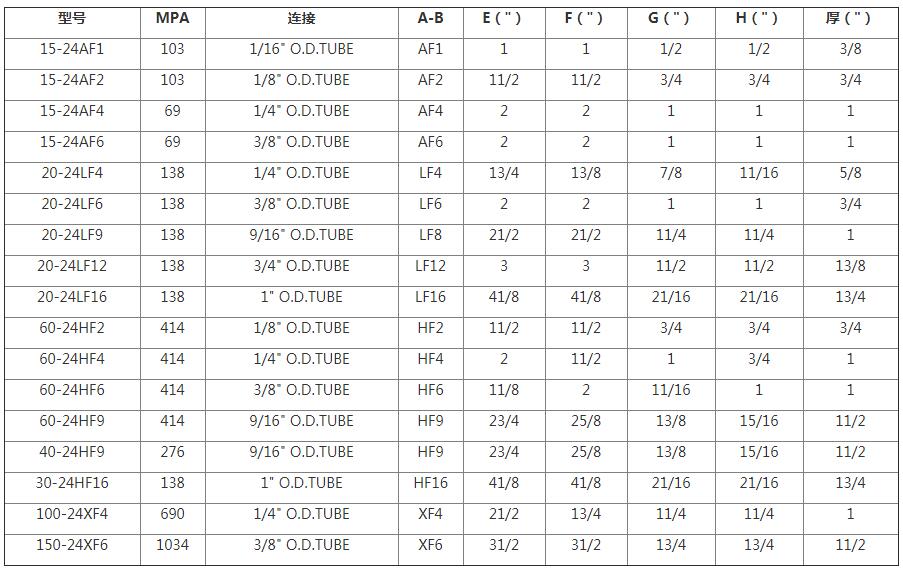

温馨提示:由于厂家可能会调整型号,我们没有及时更新,以上选型参数仅供参考,建议咨询我们人工确认。
